Chemical Single Pipe & Plural Pipe Automatic Line

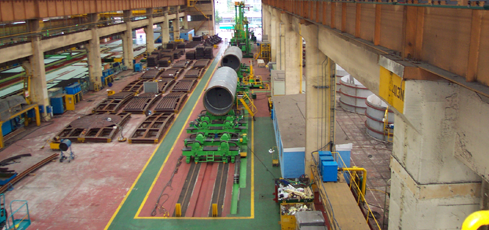

Facility Overview
In manufacturing pressure vessels for the production section of plant chemical facilities, this facility can maximize production efficiency and build an efficient production system through enhancement of productivity, workability, and stability, and the rationalization and improvement of management in each work process by reducing and eliminating the existing manual work area in the production method and manufacturing process.

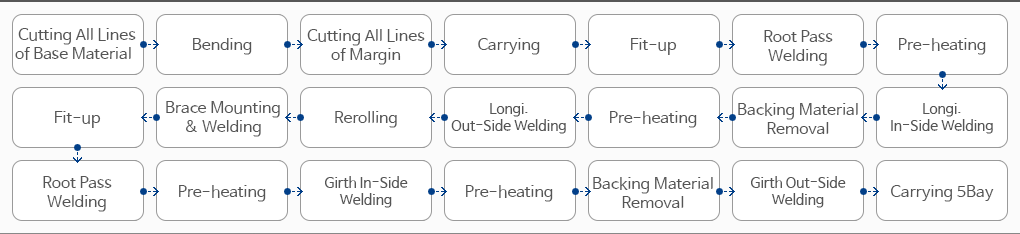

Facility Process

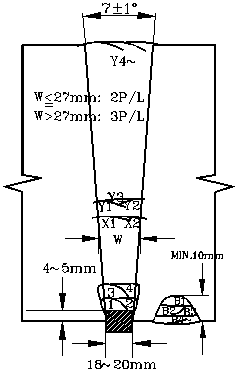

Groove Design, W/D Process
| Items | Specifications | Remarks | |
|---|---|---|---|
| 1. Groove Design | t < 20 |  |
Longi, Girth Seam 동일
|
| 20 ≤ t < 70 |  |
||
| 2. W/D Process | SAW 3 Pole | DC+AC+AC | |
| 3. W/D Speed | 1,000～1,600mm/min | ||
| 4. Wire | EH-14 (∅4.0 or ∅3.2) | ||
| 5. Flux | S-787 and others | 12×60 Mesh, Bonded Type | |
