Iron-manufacturing Facilities
Steel Refining Facilities
A steel refining facility is an essential facility for the steelmaking process that determines the basic quality of steel produced in steelworks and it is the core transfer facility for the steelmaking process in which molten steel is produced after the processes of loading, transferring and refining (removing impurities) of molten iron produced in blast furnaces, and we are securing market competitiveness in response to the needs of various customers by realizing large size and unmanned automation

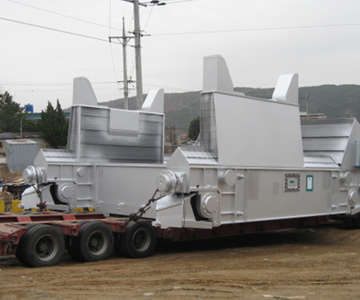

KR Ladle Transfer Car
| Facility Overview | A facility for transferring the molten iron, which is transferred by Charging Ladle Transfer Car, to the post-process after refining (removing impurities) it |
|---|---|
| Facility Specifications | Max. Load 480Ton (With Ladle) Max. Speed 20m/min |
| Facility Composition | Travelling Frame, Tilting Frame, Driving Unit, Electric System |

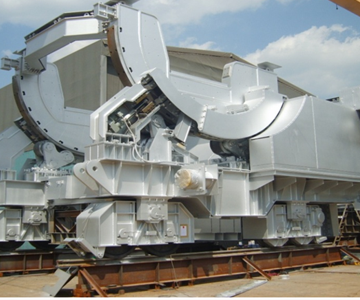

Charging Ladle Transfer Car
| Facility Overview | A facility for transferring molten iron, which is transferred from iron refining process of steelworks, to KR process after loading in Ladle |
|---|---|
| Facility Specifications | Max. Load 480Ton (With Ladle) Max. Speed 20m/min |
| Facility Composition | Travelling Frame, Tilting Frame, Driving Unit, Electric System |

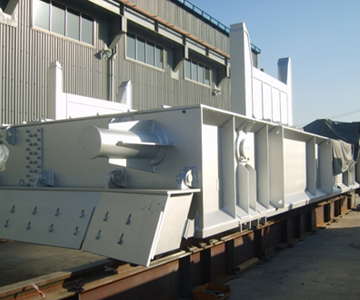

Teeming Ladle Transfer Car
| Facility Overview | A facility for transferring molten steel Ladle, which is transferred by KR Ladle Transfer Car, to post-process (converter) |
|---|---|
| Facility Specifications | Max. Load 480Ton (With Ladle) Max. Speed 20m/min |
| Facility Composition | Travelling Frame, Tilting Frame, Driving Unit, Electric System |
Rolling Facility
As a facility for producing Cold Rolled Steel Sheet which is a raw material for automobiles, household appliances, furniture, office supplies, etc., the rolling facility consists of equipments for various purposes for each facility process, and we are doing our best to satisfy our customers with long manufacturing experience of each equipment and results.

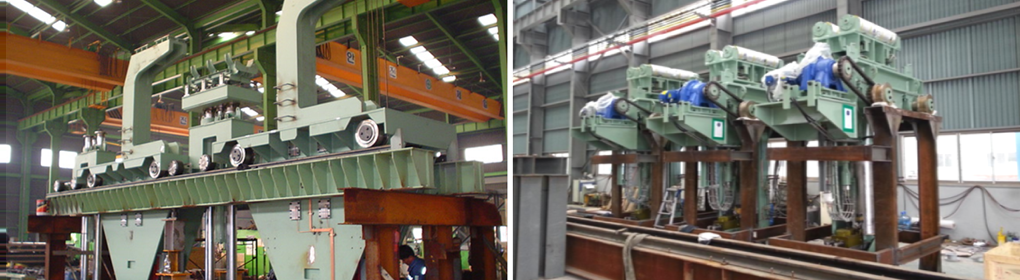

Coil Car and Inlet-Outlet Facilities
| Facility Overview | A facility for transferring the waiting coil to the post-process |
|---|

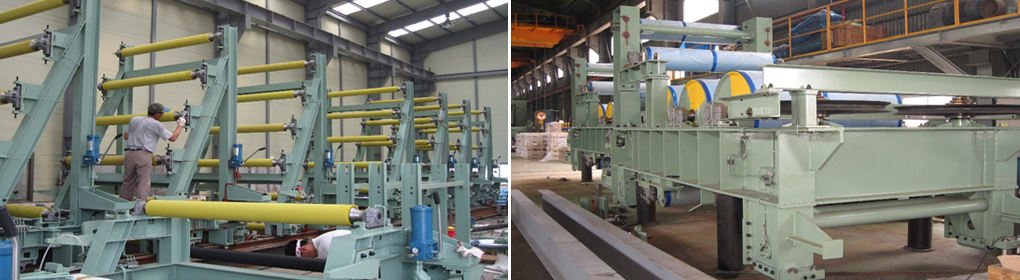

Looper
| Facility Overview | A facility to store and supply strips for continuous operation in case of line waiting or stop during cold rolling process |
|---|
