40Poles Longi. Welding M/C
Equipment Overview

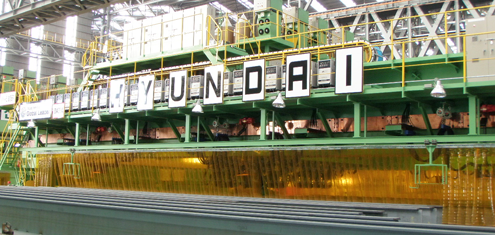

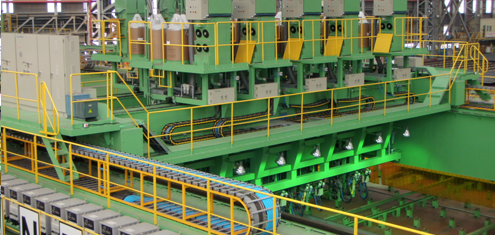

This system is an equipment used to automatically weld the Fillet Joint of the mainboard and Longi. at PANEL factories and it is possible to weld 10 pieces of Longi. automatically because it is composed with 10Head type structure, and it performs Gantry driving and Welding Carriage driving as it is equipped with Welding Power Source, Pail Pack, Fume Collector, Wire Feeder, etc. on the Gantry structure, and also it is an automation equipment for applying the Multi Control method to improve workability, productivity, and work environment.
Equipment Composition
- Main Gantry
- Welding Carriage
- Welding Head
- Fume Collector
- Pail Pack
- Control System

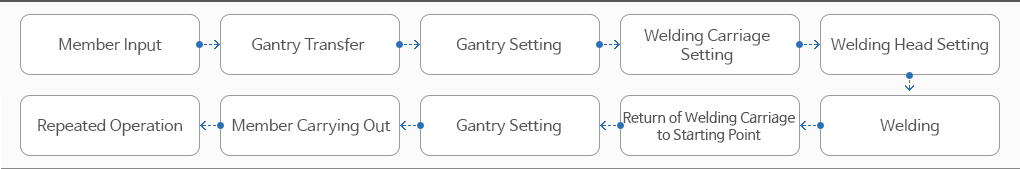

Manufacturing Process
Welding Technique
| No | Description | Specification | Remark |
|---|---|---|---|
| 1 | Welding Process | FCAW | |
| 2 | Pole Composition | 40Pole | |
| 3 | Welding Position | 1G | |
| 4 | Applied Wire | ∅1.2mm ~ ∅1.6mm | |
| 5 | Welding Speed | 100mm/min ~ 1,500mm/min | |
| 6 | Weld Seam Line Tracking Method | Mechanical Guide Roller |
